Artisential

Ergonomically designed instrument with double jointed structure
provides 360 ° multi-degree of freedom and intuitive control.

Articulation + Essential

ArtiSential is a blending of two words Articulation and Essential.
Our multi-joint-end-effectors allow for articulation that is essential for accessing narrow surgical sites and precision surgery.

"One word that can describe ‘ArtiSential’ is its ‘intuitiveness’. "

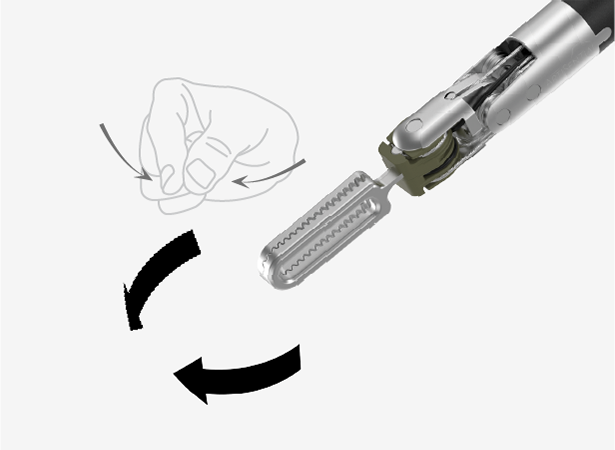

The movement of the user’s hand, wrist, and fingers are synchronized with the corresponding movements of the end-effector.

Synchronized movement between end-effector and user's hand

  • OPEN

  • CLOSE

  • UP

  • DOWN

  • RIGHT

  • LEFT

ArtiSential’s end-effectors have both a vertical and horizontal joint structure that are synchronized with the delicate movements of the user’s hands.
This allows for greater access to narrow surgical sites.
Its multiple degrees of movement allows the users to perform more complex techniques in
a wider variety of surgical procedures than those with rigid or straight instruments.


How to use the lock

Activating the locking mechanism

① Push the lever outward ② until the lever goes down and activates the lock.

Deactivating the locking feature

① Pull the lever inward ② until the lever clicks and deactivates the lock.

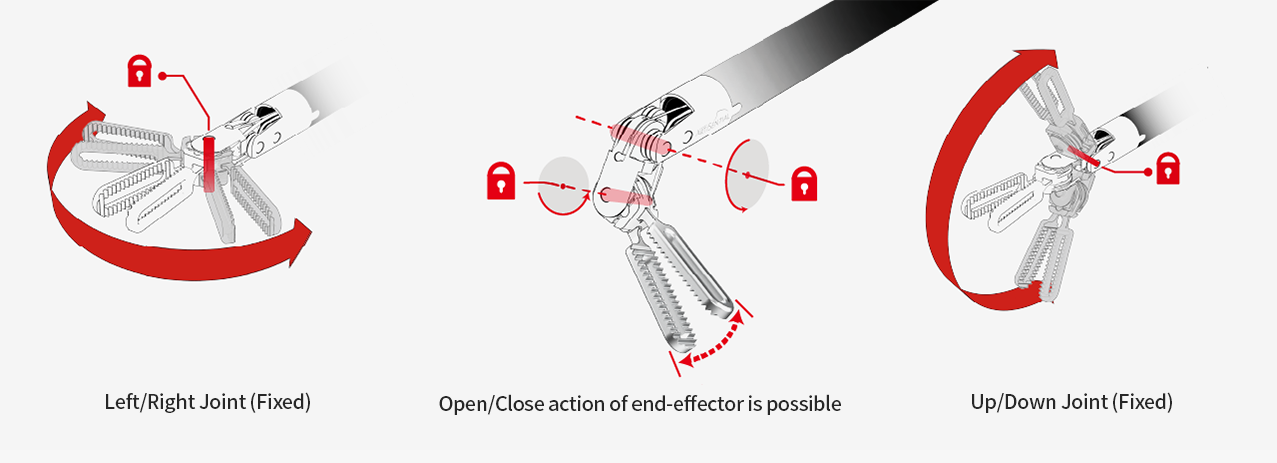

When the locking mechanism is activated UP/DOWN, LEFT/RIGHT articulating joint is fixed and cannot move,
But OPEN/CLOSE action of end-effector is possible.


Features & Advantages

360 degrees of freedom provides access to narrow spaces

ArtiSential’s double-jointed end effector allows the instrument
to move with 360 degrees of freedom, which enables various angles of approach
to the surgical site while mimicking the function of the human hand.

Intuitive Control

ArtiSential’s end-effector movement matches with the user’s fingers and
wrist movements, enabling intuitive manipulation and control
not found in conventional instruments.

Locking Feature (Optional)

For the model with locking feature, the articulating ability of ArtiSential instruments
can be controlled using the locking lever. When the locking lever is activated,
the double jointed end effector is locked in any desired geometry within its range of motion.
This will fix the UP/DOWN, LEFT/RIGHT articulating joints while OPEN/CLOSE action is allowed.

3 Shaft Lengths (25cm, 38cm, 45cm)

ArtiSential offers three shaft lengths to suit any surgical purpose.

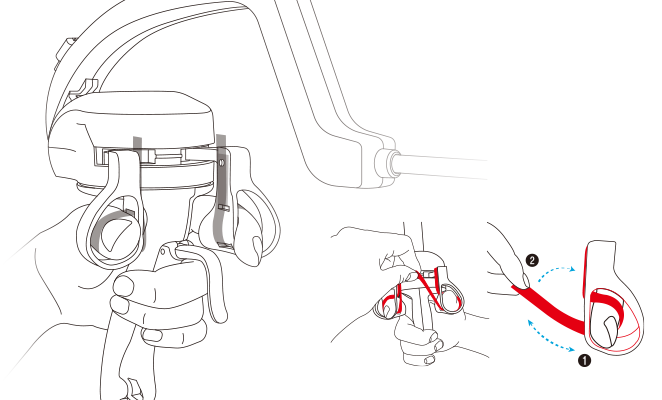

Adjustable finger strap provides even better fit
(ArtiSential Adjustable Type Only)

Tighten a strap on the jaw control ring and
make it fit to your fingers.

A complete Lineup

LIVSMED features a full suite of end effectors for any surgical task.

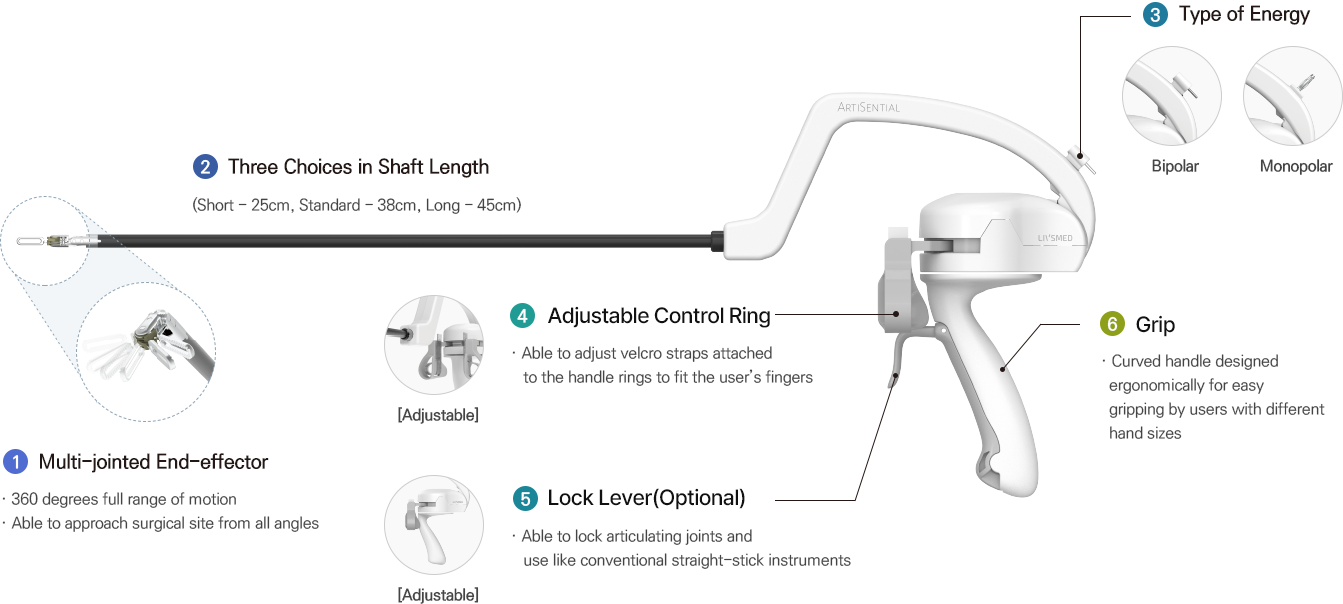

SPECIFICATION

Multi-joint-end-effector

Provides 360 degrees of freedom enabling various angles of approach
to the surgical site

Matches the delicate movements of user's hands

Shaft

Available in 3 shaft lengths (25cm, 38cm, 45cm)

Electrode

Bipolar or Monopolar depending on the product model

Jaw Control Rings

Designed for open and close action of the jaws
by the use of thumb and index finger of either hands

Locking Lever

Locks the articulating joints to a fixed end-effector position
at any desired geometry along its range of motion

Only open/close action of end-effector is possible
while locking lever is activated

Hand Grip

Designed to fit wide range of hand sizes

Ergonomic Design

Provides intuitive, highly flexible articulating control
